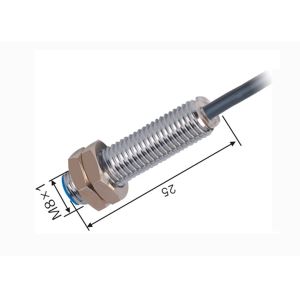

IP67 Explosion Proof Capacitance Proximity Sensor Low Voltage Nickel Plated / Brass

    Buy cheap IP67 Explosion Proof Capacitance Proximity Sensor Low Voltage Nickel Plated / Brass from wholesalers

    Buy cheap IP67 Explosion Proof Capacitance Proximity Sensor Low Voltage Nickel Plated / Brass from wholesalers
    • Buy cheap IP67 Explosion Proof Capacitance Proximity Sensor Low Voltage Nickel Plated / Brass from wholesalers
    • Buy cheap IP67 Explosion Proof Capacitance Proximity Sensor Low Voltage Nickel Plated / Brass from wholesalers

    IP67 Explosion Proof Capacitance Proximity Sensor Low Voltage Nickel Plated / Brass

    Ask Lasest Price
    Brand Name : Winston/OEM
    Model Number : AM8
    Certification : CE,ROSH
    Price : Negotiable
    Payment Terms : T/T,L/C,Paypal,Online Payment,RMB/USD
    Supply Ability : 10000PCS/Month
    Delivery Time : 3-15days after get payment.
    • Product Details
    • Company Profile

    IP67 Explosion Proof Capacitance Proximity Sensor Low Voltage Nickel Plated / Brass

    IP67 Explosion Proof Capacitance Proximity Sensor Low Voltage Nickel Plated / Brass
    Technique parameter


    AM8

    Safety Explosion-Proof Proximity Switch
    FlushDetection Distance1mm
    DC6-36VNPNNO
    NC
    NO+NC
    PNPNO
    NC
    NO+NC
    Two Wire SystemNO
    NCAM8-3001LB
    AC90-250VControllable
    Silicon
    NO
    NC
    NO/NC
    Relay output
    Non-FlushDetection Distance2mm
    DC6-36VNPNNO
    NC
    NO+NC
    PNPNO
    NC
    NO+NC
    Two Wire SystemNO
    NCAM8-3002LB
    AC90-250VControllable
    Silicon
    NO
    NC
    NO/NC
    Relay output


    Features:


    1 . Low-voltage power supply
    2 . Micro-current output
    3 . Small volume
    4 . Long service life
    5 . Protection structure IP67(IEC standard)


    Safety Explosion-proof Proximity Switch


    Namur sensor, also called safety explosion proof proximity switch, is made according to NAMUR and DIN 1923, measured and designed as per chemical industry standard.

    With low-voltage power supply,micro-current output,small volume and other advantages.Namur sensors can be applied for special places with requirements of explosion proof.


    Model explanation of proximity switch

    LM 18 30 05 N A □ / L
    —— —— - —— —— —— —— —— ——
    1 2 3 4 5 6 7 8

    Switch categoryOutput form


    Lm: Inductance type
    Cm: Capacitance type
    Sm: Hall type
    Am: Safety Explosion-proof type
    Xm: Mimic Linear type
    Hm: Reed type
    Ru: Ultrasonic type

    N: Three-wire Dc NpN Output
    P: Three-wire Dc PnP Output
    L: Two-wire Dc Output
    : Ac Two-wire Output
    J: Relay Contact Output
    Np: NpN+PnP Double Output

    Outward appearance codeOutput state


    □: Cylinder type
    F□: Angular Colum Type And Plane Installation Type


    A: (no) normally Open (no)
    B: (nc) Normally Close (nc)
    C: (no-nc) normally Open-Normally Close (no+nc)
    Mu: Mimic Voltage
    Mi: Mimic Current
    Mui: Voltage+Current

    Working voltageSubsidiart functions


    30: 6-36VDC 310:5-24VDC 320:12-60VDC
    330: 10-30VDC 340:10-55VDC 350:10-60VDC
    360: 5-36VDC 20:90-250VAC 210:24-250VAC
    220: 380VAC40:12-240VDC/24-240AC
    50: Special voltage

    T: with aviation connector
    Y: water proof,oil proof
    I: special requirement
    H: high temp resistance
    R: ring type

    Detection distanceLong-distance


    01: 1mm 05: 5mm 10: 10mm ......

    L: Long-distance



    Working priciple inductive proximity switch

    Inductive proximity switch is composed of three parts:oscillator,switch circuit and magnified output circuit.The oscillator will generate an alternating electric field.When hemetal object approaches this electric field and reaches the induction distance, whirlpool will generate in metal object, resulting in attenuation of vibrati on and then stop.The changeof vibration and stop of oscillator is treated by begid stage magnified circuit and convertedto switching sign,triggering driving con-contact detection.
    Current consumption of inductive proximity switch decreases proportional to the metal object distance.

    Application illustration of proximity switch

    1 . Spacing detection
    2 . Stopper detection of grinding machine
    3 . Bottle lid detection

    4 . Arm location detection of robot


    Product Picture



    FAQ

    Q: How to order our product ?

    A:1).Please tell us the model and quantity and other request you need.

    2).We make the PI for you.

    3).After you confirm the PI, we arrange the order for you after receiving your payment.

    4).After the goods finished, we send the goods out to you and tell you the tracking number.

    5).We will track your goods until you receive the goods.


    Q: What's your warranty ?

    A: Two years


    Q: What's your shipment method?

    A: We ship by Express, by air, by sea, by train. Normally we checked and compare, then provide customer the most proper shipment method.


    Q: What's about MOQ?

    A: First order MOQ=1pcs


    Q: If i want to release order, what's the payment method you accept ?

    A: We accept T/T, Paypal, Western union, L/C.


    Q: If i want to release order, what's the process?

    A: Thanks. You can send inquiry to us by Maoyt or send us by email, we will reply within 24hrs.
