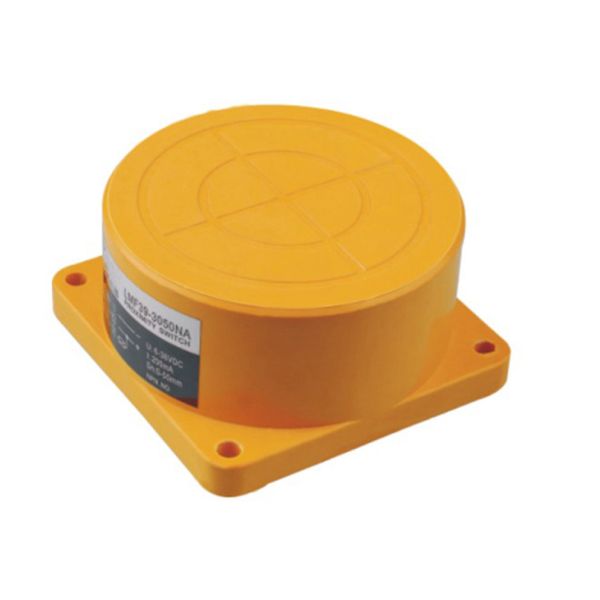

    High On-Off Frequency Inductive Proximity Sensor LMF39 Oilproof Screw Mounting

    Ask Lasest Price
    Brand Name : Winston/OEM
    Model Number : LMF39
    Certification : CE,ROSH
    Price : Negotiable
    Payment Terms : T/T,L/C,Paypal,Online Payment,RMB/USD
    Supply Ability : 10000PCS/Month
    Delivery Time : 3-15days after get payment.
    • Product Details
    • Company Profile

    High On-Off Frequency Inductive Proximity Sensor LMF39 Oilproof Screw Mounting

    High On-Off Frequency Inductive Proximity Sensor LMF39 Oilproof Screw Mounting
    Technique parameter
    ModelLMF39
    Flush TypeDectection Distance
    DC 6~36VDCNPNNO
    NC
    NO+NC
    PNPNO
    NC
    NO+NC
    Two-wire SystemNO.
    NC.
    AC 90~250VACSCR Controllable SiliconNO
    NC
    NO+NC
    Relay Output
    Non-flush TypeDectection Distance1~50MM
    DC 6~36VDCNPNNOLMF39-3050NA
    NCLMF39-3050NB
    NO+NCLMF39-3050NC
    PNPNOLMF39-3050PA
    NCLMF39-3050PB
    NO+NCLMF39-3050PC
    Two-wire SystemNO.LMF39-2050LA
    NC.LMF39-2050LB
    AC 90~250VACSCR Controllable SiliconNOLMF39-2050A
    NCLMF39-2050B
    NO+NCLMF39-2050C
    Relay OutputLMF39-2050JC
    Output CurrentDC200MA
    SCR/Relay300MA
    Output Voltage Drop DC/AClower than 3V
    Consumption Currentlower than 15MA
    Standard Detected Object120*120*1 (A3 Iron)
    Repeated Precision0.5
    DC/AC Response Frequency50HZ/15HZ
    Working Temperature-25 deg C~+75 deg C
    Insulation ResistanceMore than 50MΩ
    Shell MaterialABS Resin
    Protection GradeIP67

    Features:


    1 . High precision of repeated location
    2 . Diversified exterior structures
    3 . High on-off frequency.
    4 . Wide voltage range
    5 . Dust proof, vibration proof, water proof and oil proof

    6 . Compact volume
    7 . Long service life
    8 . Good performance of anti-interference.

    Model explanation of proximity switch

    LM 18 30 05 N A □ / L
    —— —— - —— —— —— —— —— ——
    1 2 3 4 5 6 7 8

    Switch categoryOutput form


    Lm: Inductance type
    Cm: Capacitance type
    Sm: Hall type
    Am: Safety Explosion-proof type
    Xm: Mimic Linear type
    Hm: Reed type
    Ru: Ultrasonic type

    N: Three-wire Dc NpN Output
    P: Three-wire Dc PnP Output
    L: Two-wire Dc Output
    : Ac Two-wire Output
    J: Relay Contact Output
    Np: NpN+PnP Double Output

    Outward appearance codeOutput state


    □: Cylinder type
    F□: Angular Colum Type And Plane Installation Type


    A: (no) normally Open (no)
    B: (nc) Normally Close (nc)
    C: (no-nc) normally Open-Normally Close (no+nc)
    Mu: Mimic Voltage
    Mi: Mimic Current
    Mui: Voltage+Current

    Working voltageSubsidiart functions


    30: 6-36VDC 310:5-24VDC 320:12-60VDC
    330: 10-30VDC 340:10-55VDC 350:10-60VDC
    360: 5-36VDC 20:90-250VAC 210:24-250VAC
    220: 380VAC40:12-240VDC/24-240AC
    50: Special voltage

    T: with aviation connector
    Y: water proof,oil proof
    I: special requirement
    H: high temp resistance
    R: ring type

    Detection distanceLong-distance


    01: 1mm 05: 5mm 10: 10mm ......

    L: Long-distance



    Working priciple inductive proximity switch

    Inductive proximity switch is composed of three parts:oscillator,switch circuit and magnified output circuit.The oscillator will generate an alternating electric field.When hemetal object approaches this electric field and reaches the induction distance, whirlpool will generate in metal object, resulting in attenuation of vibrati on and then stop.The changeof vibration and stop of oscillator is treated by begid stage magnified circuit and convertedto switching sign,triggering driving con-contact detection.
    Current consumption of inductive proximity switch decreases proportional to the metal object distance.

    Application illustration of proximity switch

    1 . Various location detection of machinery process center
    2 . Arm location detection of robot
    3 . Inspection of the exiating of milk inside the paper package
    4 . Spacing detection

    Dimension


    Product Picture


    Our Services
    • Customized Samples are acceptable
    • Accept different payment methods, such as T/T, L/C, Western Union, Escrow to meet your different financial requirements
    • Welcome and accept 100% customers factory inspection before the production
    • Supply skills training including product basic knowledge, installation, operation, maintenance skills training for the local people
    • We provide 7 days 24 hours service!
